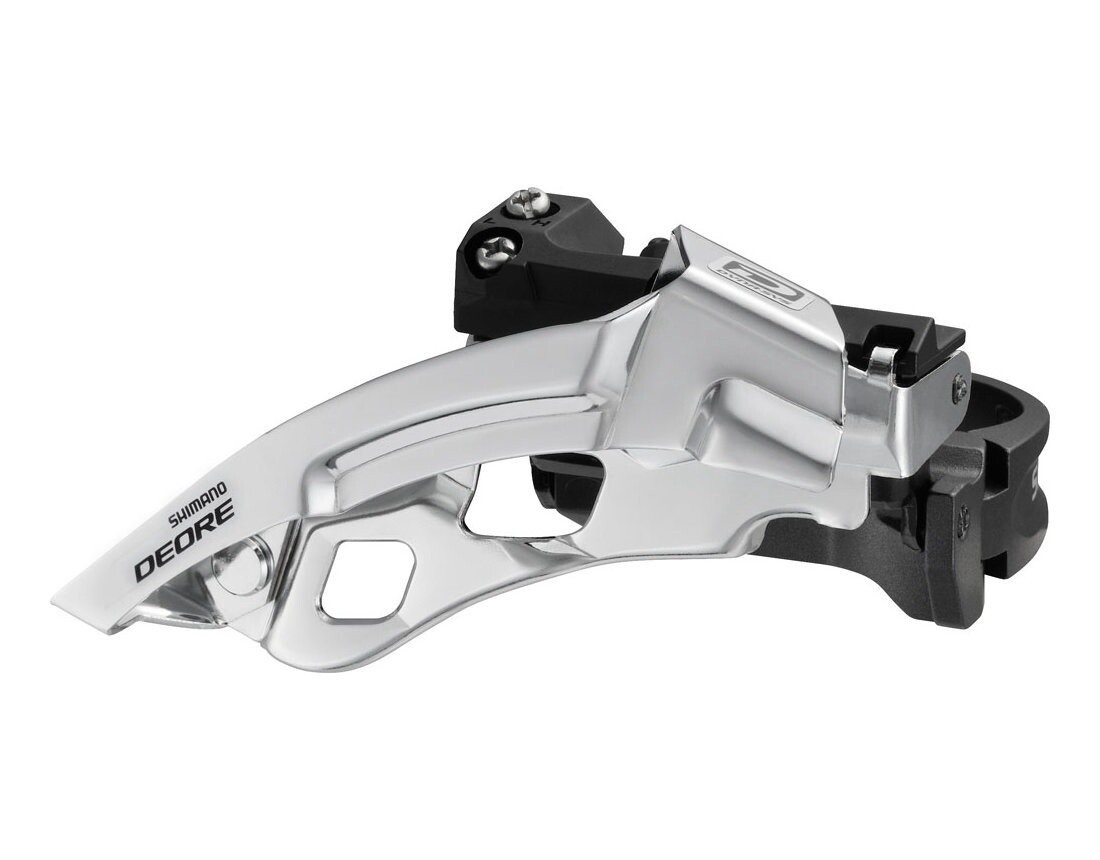

Shimano Deore FD-M610 Front Derailleur

Shimano Deore Front Derailleur FD-M610

To guarantee for the Dyna-Sys compact 3-way cranks optimum switching performance, SHIMANO also developed corresponding new derailleur.

In terms of smooth gearshifts, easy operation and low profile they are at the same high level as the current front derailleur, but are compatible with both the current 42 to 32-24T crankset and with the new 40-30-22T.

"Rider Tuned ": Fits through large translation diversity to different bikes and riding styles

Pedaling through narrow gradations efficiently

Consistently high performance switching for MTB

Sturdy chain management

Series: Deore Dyna Sys

Model: FD-M610

Clamp diameter: 34.9mm with adapters 31.8mm/28.6mm

Switching steps back: 10-fold

Chainring triple chainring

Chainring: 42-40 teeth

Capacity: 18 teeth

Cable routing: Dual Pull

Chainstay angle: 66-69°

Chainline: 50mm

Parallelogram outside: painted

Parallelogram inside: aluminum painted
