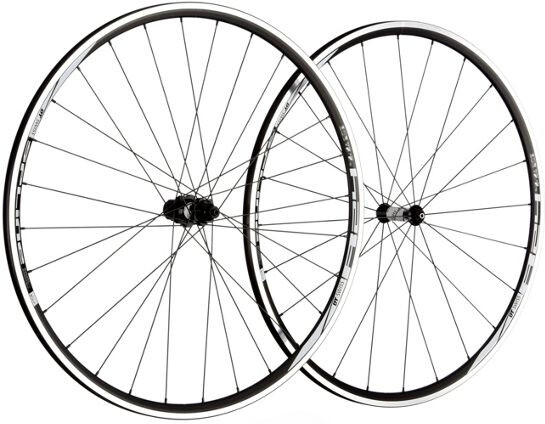

DT Swiss R24 Spline Road Wheelset

DT Swiss R24 Spline Road Wheelset

At the core of this all-round wheelset lies a brand new aluminium rim with its balanced width to stiffness to weight ratio.

With these features it is a premium training wheel, be it for road or cyclocross use.

Features:

Hub Axle System: 5/100mm (Front), 5/130mm (Rear) QR

Tyre Type: Clincher

Rim Dimension: 622x14

Inner Width: 14mm

Outer Width: 19mm

Valve Hole: Presta/SV 6.5mm

Rim Material: Aluminium

Freewheel: Pawl System

Freewheel Body: Shimano 11 Road

Spokes: DT Swiss PG

Nipples: DT Prolock Aluminium

Lacing: Radial (Front) 2 Cross (Rear)

Recommended System Weight: 110kg

Front Wheel Weight: 840g

Rear Wheel Weight: 1100g

Total Wheelset Weight: 1940g

Technologies:

Pawl: A proven freewheel system with pawls, reliable and safe.

Prolock: A patented liquid injected into the nipple thread allows for extremely durable wheel builds.

Quick Release: A wheel mounting system developed by Tullio Campagnolo in 1922.

Sleeve Jointing: A precise sleeve connects the profile; this guarantees optimum resistance against all occurring loads. Sleeve jointing is the best alternative to SBWT welded rims.

Straightpull: The term Straightpull refers to spokes with no bend at the head. This design allows for an ideal strength to weight ratio when compared to conventional spokes. Due to their more precise alignment and direct trajectory, straight-pull spoke technology creates a stiffer, more responsive wheel.

Spline: With straight pull spokes and the use of specific lacing, superlight hubs as well as high end rims featuring key DT Swiss technology, SPLINE® wheels make for a perfect training and racing partner.
